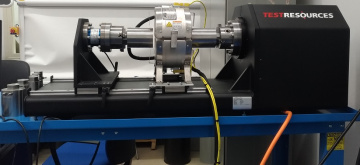

Torsion testing machine

                                                       MACHINE FEATURES

Constructor

TESTRESOURCES

Model

160Q Universal Torsion Test Machine

Static Torque

2 Nm to 500 Nm

Test temperature range

RT up to 800°C

Speed at full load

2 RPM

Angular resolution

4 arcmin

Travel

continuous rotation clockwise and counterclockwise

Specimens size

Square section side: 6 mm, 30 mm and 50 mm

Furnace specifications

F3210 Small Half Furnace

- Operating Temperature: up to 800 °C

- Thermocouple ports:  located midlength in heat zone

- Thermocouple, Type K, with ceramic insulator

- Thermocouple connector (male half only) with mounting bracket, attached to the shell
