Thermography analysis

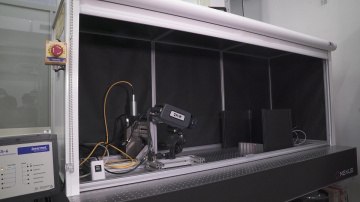

Thermal camera
MACHINE FEATURES |
|
Thermo camera specification |
|
Constructor |
Flir |
Model |
A6751 sc |
Detector Type |
FLIR Indium Antimonide (InSb) |
Spectral Range |
3 – 5 μm or 1 - 5 μm |
Resolution |
640 × 512 |
Detector Pitch |
15 μm |
NETD |
<20 mK (18 mk typical) |
Temperature Range |
Up to 1500°C |
Lens |
50 mm |
Integration Time |
480 ns to 687 sec |
Frame Rate (Full Window) |
Programmable 0.0015Hz to 125Hz |
Max Frame Rate (@ Full Window) |
4,175Hz (16 x 4) |
Dynamic Range |
14-bit |
Laser specification |
|
Constructor |
IPG Photonics |
Model |
YLPN-V2-1-100-50-50 |
Operation mode |
Pulsed |
Max pulse energy |
1 mJ |
Nominal average output power |
50 W |
Nominal pulse repetition rate |
50 kHz |
Repetition Rate |
2 - 200 kHz |
Pulse duration |
100 ns |
Central emission wavelength |
1064 nm |
Beam Quality |
<2 M2 |
