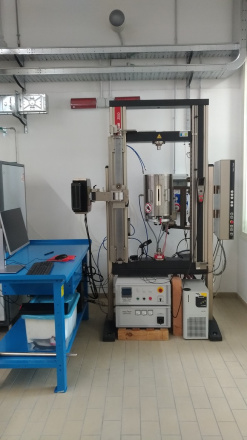

Universal testing machine
| MACHINE FEATURES |
|
| Constructor |
Zwick/Roell |
| Model |
Z050 THW |
| Load FN in tensile/compression direction |
50 kN |
| Load cells |
- XForce HP 5 kN accuracy class 1 (from 0,2% of FN): 10 N - XForce HP 50 kN accuracy class 1 (from 0,2% of FN): 100 N |
| Test area width |
640 mm |
| Height of lower test area, without accessories |
1325 mm |
| Height of upper test area, without accessories |
1365 mm |
| Crosshead speed up to 110% of test load (vmin ... vNom) |
0.0005 ... 600 mm/min |
| Increased crosshead return speed(at reduced force) |
1000 mm/min |
| Drive system´s travel resolution |
0,31789 nm |
| Testing temperature |
RT up to 1200 °C |
| Non-contact strain measurement without marking |
laserXtens 2-220 HP - Class 0,5 EN ISO 9513 - Resolution 0,07 μm according to EN ISO 9513 under real testing conditions - Gauge length 3 – 200 mm - Max. following speed on the specimen 500 mm/min |
| Furnace specifications |
MAYTECH HTO-39-DSO Double slot furnace up to 1200 °C - Max. heating rate: 20 °C/min - Protective gas: Argon - Inner heating area: diameter 100 mm, height 300 mm - 3 Termocouples: Type N to measure the temperature of sample in the upper, middle and lower part |
